Antibody decay curve with natural parameters

Description

Antibody decay curve with natural parameters

Usage

antibody_decay_curve(
  t,
  y0 = 0.74916052,
  b0 = 1,
  mu_b = 0.18432798,
  mu_y = 0.36853621,
  gamma = 0.0013040664,
  alpha = 2.192627e-05,
  rho = 2
)

Arguments

t time since infection
y0 initial antibody concentration
b0 initial bacteria concentration
mu_b pathogen reproduction rate
mu_y antibody reproduction rate
gamma bacteria destruction rate per antibody
alpha antibody decay rate
rho antibody decay rate power function parameter

Value

a numeric() vector

Examples

Code
library("serocalculator")

library(ggplot2)

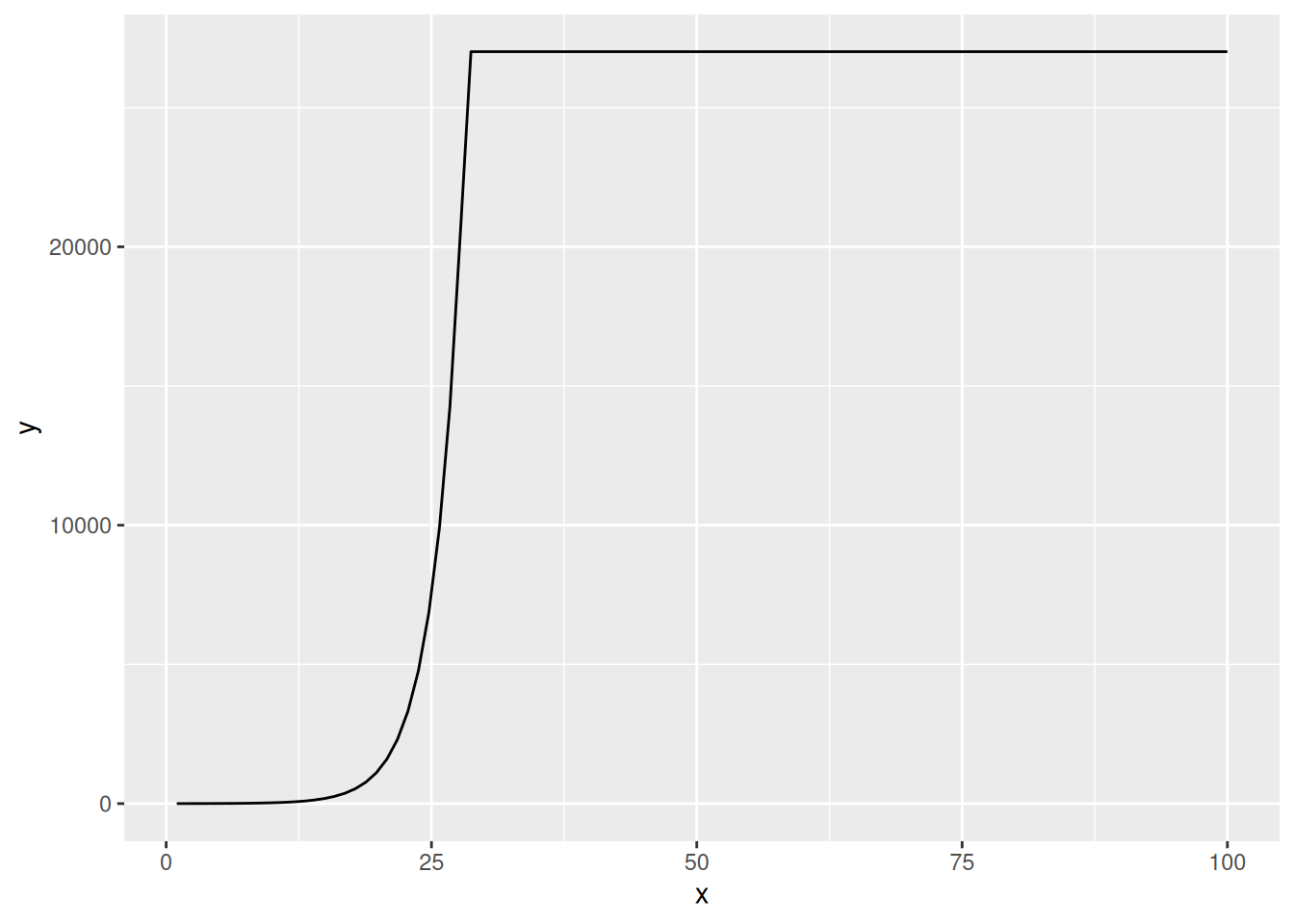

ggplot() + geom_function(fun = antibody_decay_curve) + xlim(1, 100)
