Advanced Quarto Article

UC Davis Seroepidemiology Research Group (UCD-SERG)

2026-02-02

Code
library(rpt)

1 Overview

This article demonstrates advanced features of Quarto for package documentation. Unlike vignettes, articles are only available on the documentation website and are not included in the package bundle.

2 When to Use Articles vs Vignettes

Vignettes should be used for:

  • Core package documentation
  • Essential usage examples
  • Content that users need offline

Articles are better for:

  • Extended tutorials
  • Case studies and detailed examples
  • Content with large datasets or external dependencies
  • Supplementary material

3 Advanced Quarto Features

3.1 Cross-References

Quarto makes it easy to create cross-references. For example, see Figure 1 for a scatter plot and Table 1 for a summary table.

Code
# Generate sample data
set.seed(123)
x <- rnorm(100)
y <- 2 * x + rnorm(100, 0, 0.5)

# Create scatter plot
plot(x, y,
     main = "Example Scatter Plot",
     xlab = "X Variable",
     ylab = "Y Variable",
     pch = 16,
     col = rgb(0.2, 0.4, 0.6, 0.6))
abline(lm(y ~ x), col = "red", lwd = 2)

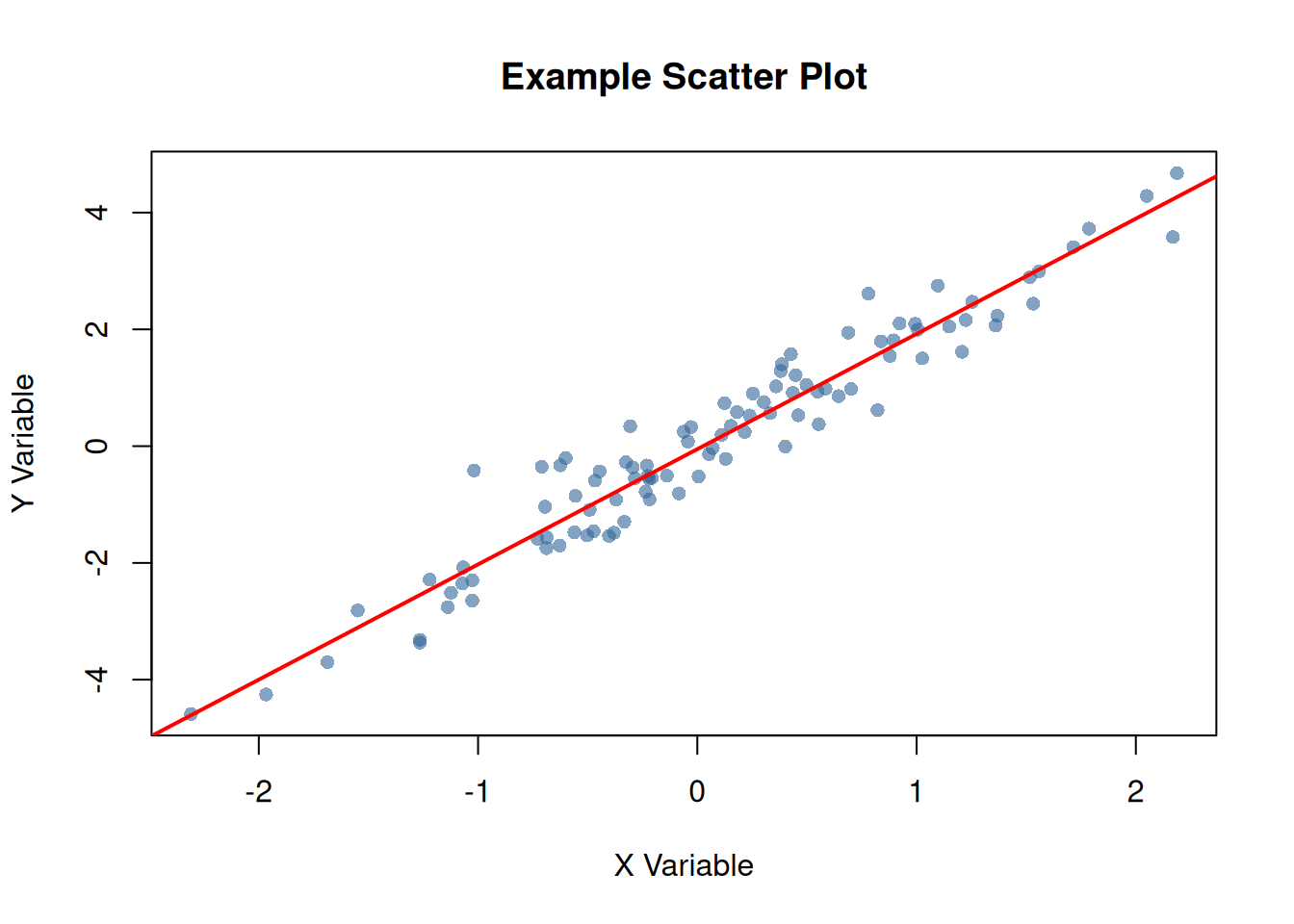

Figure 1: Scatter plot demonstrating cross-referencing

3.2 Summary Tables

Code
data_summary <- data.frame(
  Statistic = c("Mean", "Median", "SD", "Min", "Max"),
  X = c(mean(x), median(x), sd(x), min(x), max(x)),
  Y = c(mean(y), median(y), sd(y), min(y), max(y))
)

knitr::kable(data_summary, digits = 3)
Table 1: Summary statistics for example data
Statistic X Y
Mean 0.090 0.127
Median 0.062 0.137
SD 0.913 1.865
Min -2.309 -4.586
Max 2.187 4.675

As shown in Table 1, the variables have similar distributions.

3.3 Code Folding

You can make code chunks foldable:

Show the code for data preparation
# Prepare more complex data
complex_data <- data.frame(
  id = 1:50,
  group = rep(c("A", "B"), each = 25),
  value1 = rnorm(50, 100, 15),
  value2 = rnorm(50, 50, 10)
)

# Calculate group statistics
group_stats <- aggregate(
  cbind(value1, value2) ~ group,
  data = complex_data,
  FUN = function(x) c(mean = mean(x), sd = sd(x))
)

print(group_stats)
#>   group value1.mean value1.sd value2.mean value2.sd
#> 1     A   101.61247  14.63952   51.727220 10.047051
#> 2     B    98.13191  13.84514   53.261796  8.934998

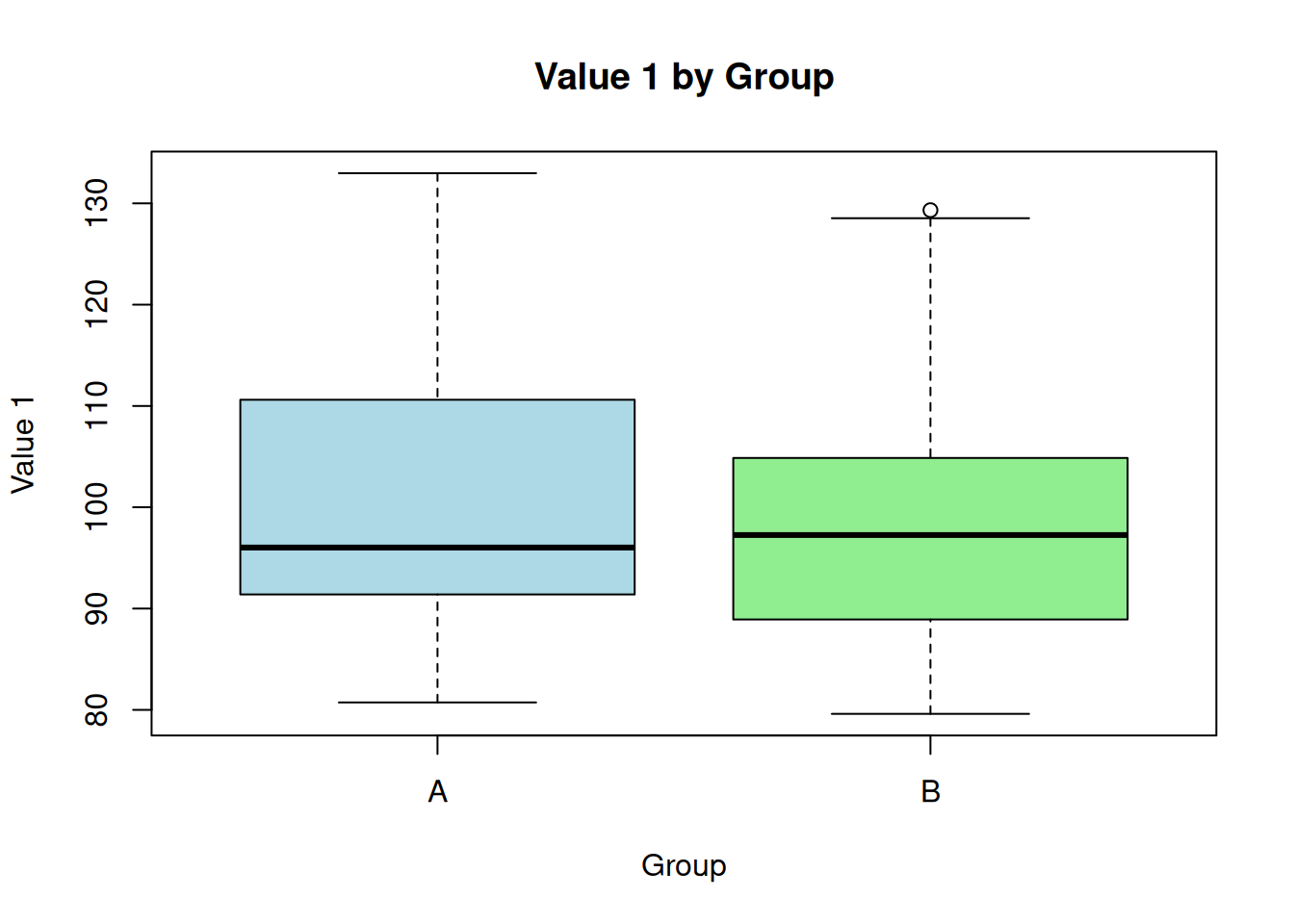

3.4 Tabsets

#>        id           group               value1           value2
#>  Min.   : 1.00   Length:50          Min.   : 79.60   Min.   :32.43
#>  1st Qu.:13.25   Class :character   1st Qu.: 89.29   1st Qu.:46.76
#>  Median :25.50   Mode  :character   Median : 96.64   Median :51.04
#>  Mean   :25.50                      Mean   : 99.87   Mean   :52.49
#>  3rd Qu.:37.75                      3rd Qu.:107.93   3rd Qu.:59.34
#>  Max.   :50.00                      Max.   :132.98   Max.   :72.93
#>    id group    value1   value2
#> 1   1     A 132.98216 46.24397
#> 2   2     A 119.68619 44.38124
#> 3   3     A  96.02282 46.56083
#> 4   4     A 108.14791 50.90497
#> 5   5     A  93.78490 65.98509
#> 6   6     A  92.85630 49.11435
#> 7   7     A  88.17096 60.80799
#> 8   8     A  91.08074 56.30754
#> 9   9     A 124.76361 48.86360
#> 10 10     A  99.18958 34.67098

3.5 Advanced Callouts

ImportantImportant Considerations

When using this package in production:

  1. Always validate input data
  2. Check for missing values
  3. Consider computational complexity
WarningPerformance Warning

Large datasets may require additional memory and processing time.

3.6 Columns Layout

Left Column

This demonstrates a two-column layout in Quarto.

  • Feature 1
  • Feature 2
  • Feature 3

Right Column

You can place different content in each column.

4 Working with Package Functions

Here’s how to use the package’s example function with different inputs:

Code
# Numeric vector
example_function(c(5, 10, 15, 20, 25))
#> [1] 15

# Using with generated data
random_data <- runif(10, min = 0, max = 100)
example_function(random_data)
#> [1] 47.42519

5 Code Annotations

Quarto supports code annotations for detailed explanations:

Code
1
2data <- c(1, 2, 3, 4, 5)
3result <- example_function(data)
4print(result)
#> [1] 3
1
Load sample data
2
Create a simple numeric vector
3
Apply the example function from the package
4
Display the results

6 Mathematical Notation

Quarto excels at mathematical notation. Here’s an example of a statistical formula:

The standard error of the mean is calculated as:

\[ SE = \frac{s}{\sqrt{n}} \]

where \(s\) is the sample standard deviation and \(n\) is the sample size.

For a confidence interval:

\[ CI = \bar{x} \pm t_{\alpha/2, n-1} \cdot SE \]

7 Tips and Best Practices

Click to expand this section for additional tips:

  1. Use descriptive chunk labels for better organization
  2. Set global chunk options at the beginning
  3. Use cross-references to link related content
  4. Leverage callouts for important information
  5. Consider code folding for long code blocks

8 Conclusion

This article demonstrates the advanced capabilities of Quarto for creating rich, interactive documentation for R packages.
